Trace / Explosive Detection

About Trace / Explosive Detection

Our Trace and Explosive Detection solutions are designed to meet the rigorous standards of international security authorities, delivering reliable, high-performance screening in high-throughput environments.

Optimized for efficiency and minimal disruption, our equipment accurately detect a broad range of threats — including liquid explosives, metal components of parcel bombs (such as detonators, batteries, and trigger circuits) and concealed weapons or explosives hidden in footwear.

Equipped with advanced technology for high sensitivity and precise discrimination, our detectors significantly reduce false alarms from personal metal items while enabling the simultaneous detection and identification of explosives and illicit drugs — making them an essential solution for critical security checkpoints.

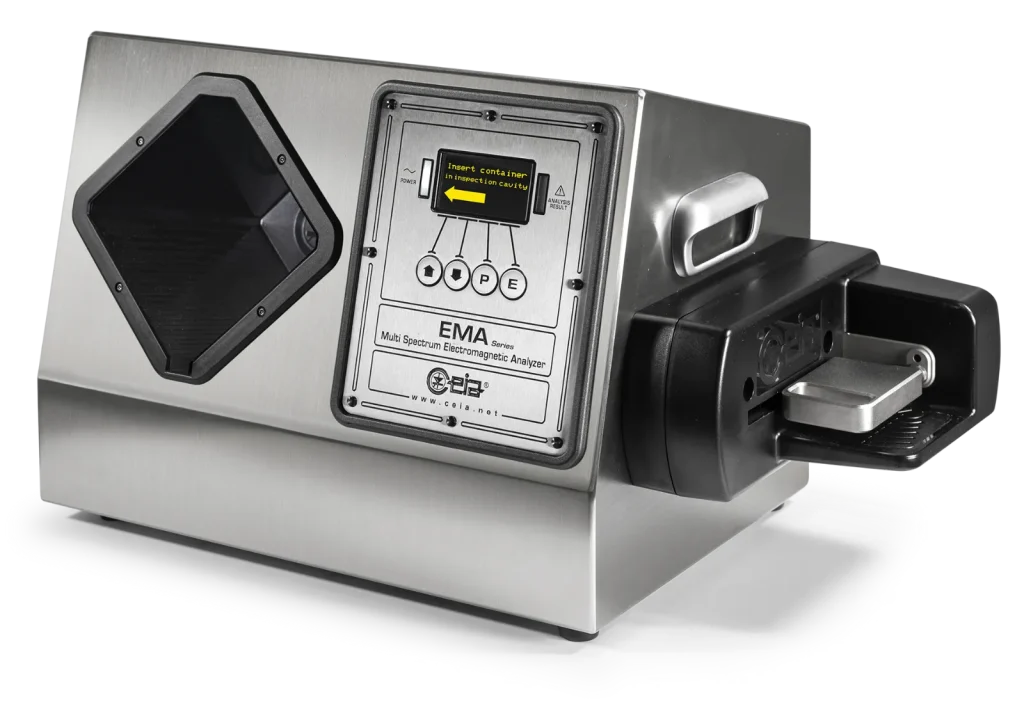

CEIA - Liquid Explosive Detector

The EMA is a compact device designed for the analysis of liquid containers and their contents with the goal of detecting the possible presence of explosive precursors and explosive liquids.

The content of the bottles is analyzed without the need to open the container as the detection is effected using simultaneous multiple sensing technologies.

The housing of the analyser, which is extremely robust, durable and easy to clean, is made of AISI 304 Stainless Steel and anti-friction plastic.

The Analyser consists of a main body, a control panel and an analysis compartment. In case of open containers such as cups and thermos flasks, it is possible to carry out the analysis by means of the type A integrated analyser (optional), using small disposable plastic sample cups to be inserted into an external probe.

Basic Specification:

Type A & B: 545mm (W) x 317mm (L) x 330mm (H) / 17.5kg

Type B only: 470mm (W) x 317mm (L) x 330mm (H) / 17kg

Key Features

Accurate automatic inspection of sealed and unsealed LAGs (Liquids, Aerosols and Gels) in ~ 5 sec. (Type B) and ~ 4 sec. (Type A – Optional)
Compact size and ergonomic design
Certified to screen liquids in clear, colored and opaque plastic and glass, metal and metallized containers
Very low combined Nuisance Alarm Rate: < 0.4%
No-ionizing source or part in movements
No maintenance required

Application Areas

Inspection of bottles or containers

Independently of their shape

Made of different materials
In a wide range of capacity

CEIA - EMIS-MAIL

The EMIS®-MAIL is designed to detect a wide variety of metal threat items including detonators, batteries, trigger circuits and other metal components of parcel bombs without false alarms for non-threat items such as metal staples, paper clips and metal binding spirals.

The EMIS®-MAIL is very easy to use and provides a fast and automatic alarm/no alarm signal confirmation per each inspected package. Its compact, ergonomic design along with the electric and built-in NiMH rechargeable battery power supply allows for independent operation in a variety of locations. An optional embedded radioactive detector is also available for radioactive material threat detection.

Basic Specification: 450mm (W) x 565mm (L) x 250mm (H) / 16kg

Key Features

Automatic inspection of parcels and letters up to 45 cm in width and 7.5 cm thickness
Detection of detonators, batteries, trigger circuits and other metallic components of letter bombs
No alarm on metal staples, paperclips and metal binding spirals
Ergonomic, compact design
Confirmation of signal (OK/ALARM) for each package inspected
Operates on mains power supply and with NiMH rechargeable batteries (opt.)
No calibration or periodic maintenance required
Integrated battery charger
Optional embedded radioactive material detector

Application Areas

Qualified to operate in a prison or correctional facility environment with specific settings available for prison parcel inspection.

CEIA - SAMDEX

New experiments and trails with shoe analyzers were performed during the 2015 and 2016 as part of the Security Vision programme (Programme Vision Surete, France) and provided preliminary feedback on this very promising type of equipment.

As well as substantially improving the quality of service given to passengers, the vast majority of whom no longer need to take their shoes off during screening, the shoe analyzers increased the efficiency of security checks. Actually, metal and explosives concealed in the shoes of people with malicious intent can be detected more easily.

Basic Specification: 535mm (W) x 715mm (L) x 980mm (H) / 120kg

Key Features

SED & SMD integrated unit
Certified against relevant detection standards for explosive and metallic threats
Bulk detection, based on actual material properties measurement
Clear “OK/ALARM” result for each shoe inspected to avoid missed analysis
Increased checkpoint throughput by elimination of shoe divestiture and X-ray check
Increased comfort: passengers keep their shoes on
Ergonomics: simple and stress-free use. Easy-to-grip handle for safe use
Analysis time: 2 sec. typical/shoe
Network: Ethernet connection and NetID compatible

Application Areas

Ideal equipment for inspection in police roadblock, large events, airports, stadiums, highways and checkpoints.

Leidos - H150E

The H150E™ detects and identifies trace amounts for a wide variety of explosives and narcotics. The system’s real-time detection algorithm delivers fast results, alerting the operator as soon as a threat is detected. With rapid clear down, the H150E is ready for the next sample within seconds, even after a positive detection.

Basic Specification:152mm (W) x 457mm (L) x 213mm (H) / 5.35kg

Key Features

Detects and identifies explosives and narcotics in seconds
Desktop-level detection performance in a portable system
Industry-leading low false alarm rate
Intuitive icon-based user interface driven by touch or integrated joystick
Daylight readable, high-resolution color touchscreen
Rapid clear-down time
Network-ready with remote diagnostics capability
Proven non-radioactive ion source
Safe-ship hot swappable batteries
Integrated sample trap holder
Low total cost of ownership

Application Areas

Ideal equipment for inspection in police roadblock, large events, airports, stadiums, highways and checkpoints.

Leidos - B220

The B220 provides simultaneous detection of explosives and drugs, delivering results in seconds. It performs real-time detection with rapid clear-down and is completely network capable. When detection occurs, it provides audio and visual alarm indications, including substance identification. Authorized users can access spectrogram display and analysis, administrative, and diagnostic tools through the easy-to-use interface.

Key Features

Simultaneously Detects Explosives And Drugs In Seconds
inCal Automatic Calibration
Intuitive Touch-Screen Controls
Non-Radioactive Ion Source
Push-Button Maintenance
Low False Alarm Rate
Remote Diagnostics
Low Total Cost Of Ownership

Application Areas

Ideal equipment for inspection in police roadblock, large events, airports, stadiums, highways and checkpoints.

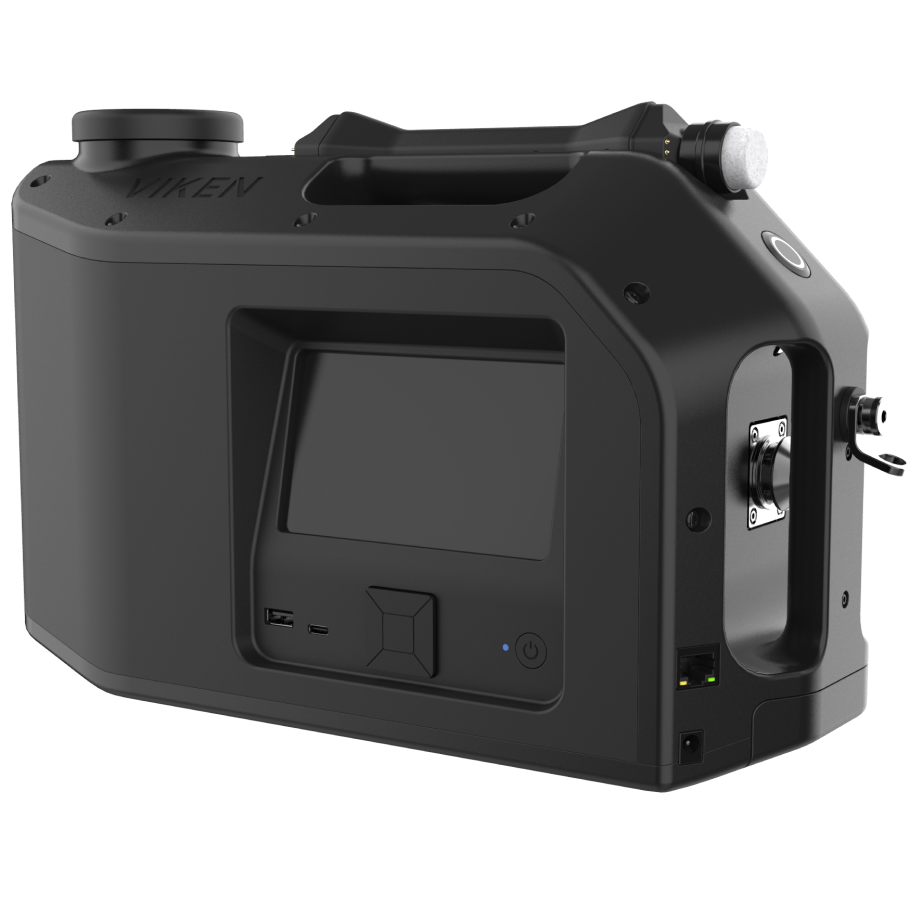

VIKEN - Foxhound™

The Foxhound HNA hunts out major classes of narcotics in seconds, including opiates, cocaine, amphetamine-based drugs, and the highly potent synthetic fentanyl. Thanks to its compact, lightweight design, the HNA is the only detector with built-in regenerative dryers that are capable of sampling in both trace and bulk modes with a single sampling wand. The Foxhound has been designed with field-ready features, including a non-radioactive ion mobility spectrometry (IMS) source (which does not require radiation licensing), and a touchscreen user interface and form-fitting sampling wand, so it can be deployed in both handheld or tabletop configurations without loss in sensitivity. Hot-swappable batteries and internal charging capability means the Foxhound works continuously while on the move.

Basic Specification: 278mm (W) x 170mm (L) x 227mm (H) / 5.4kg

Key Features

Portability and Durability: Lightweight, handheld/tabletop configurations, and hot-swappable batteries suit mobile operations.
Dual Sampling Modes: Effective for both trace residues (e.g., on surfaces) and bulk quantities.
Non-Radioactive IMS: Eliminates licensing hurdles, making it accessible for diverse agencies.

Application Areas

The Foxhound™ handheld chemical analyser is applicable in several key areas where rapid, reliable detection of narcotics is crucial, particularly in field settings. These include:
